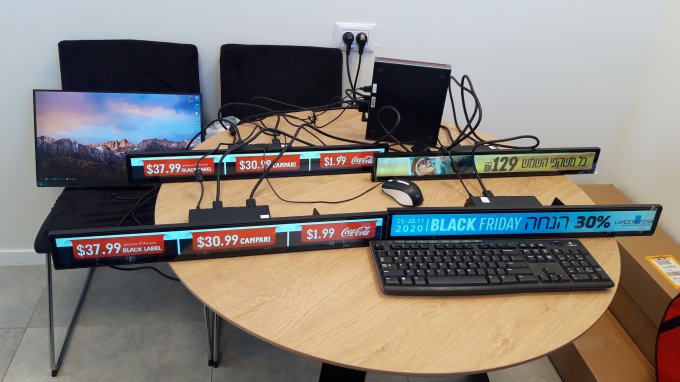

Setting up InStore Screen units

Setting up InStore Screen units



This blog post will show you how we installed special professional shelf screens (in 2 sizes combined together) by InStore (part of Lenovo). The brand of those professional displays is called “InStore Screen”.

Hardware background

Some background information about those Lenovo InStore screens: these screens have no operating system inside. They are professional displays, which means you can daisy-chain them to one another (each one has DisplayPort-in and DisplayPort-out), to combine a video wall (similar to other professional displays when combining a videowall). Only the first display gets its input directly from a media player (into its DP-in port).

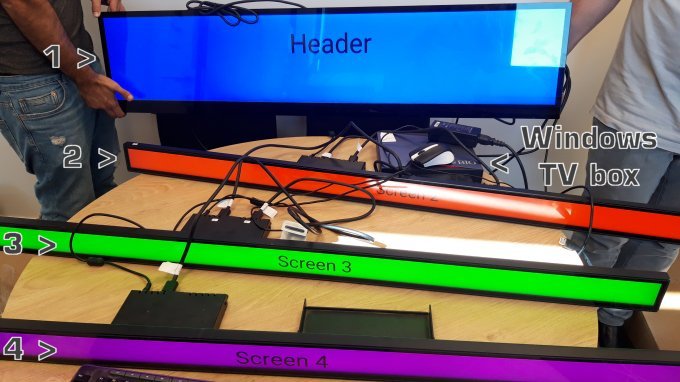

InStore Screens videowall

InStore Screens videowall



Setting the video wall layout

In this case of InStore, the media player is a strong Windows based TV box. We had it with Windows 10 operating system. It also has a configurator program installed on the PC, in order to configure the layout of the connected screens. Configuring the screens and their layout requires a user manual for that. Here is the InStore user guide for the Configurator program. So if the vendor did not provide it configurated, you will have to perform this step by yourself, using the user guide (9 pages PDF) and a special cable.

After the layout of the display was set (we put the big 1920x532p display on the top and below it 3 shelf displays of 2880x158p one under another, so number 1 was the big screen and so on).

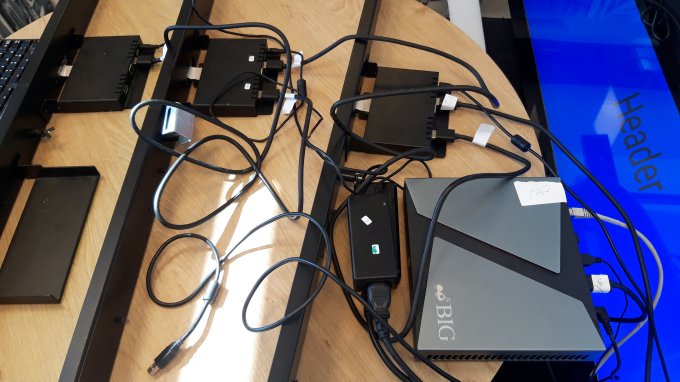

InStore Screen units daisy chained

InStore Screen units daisy-chained



Installing the NoviSign EXE

You might find it easier (as we did) to perform this step by connecting a regular TV directly to the Windows TV box with HDMI-to-HDMI cable and set an extended display state (for all the daisy-chained units).
Now, we had to install the Windows player app of NoviSign on the Windows OS. For that, we followed the Windows app installation manual.

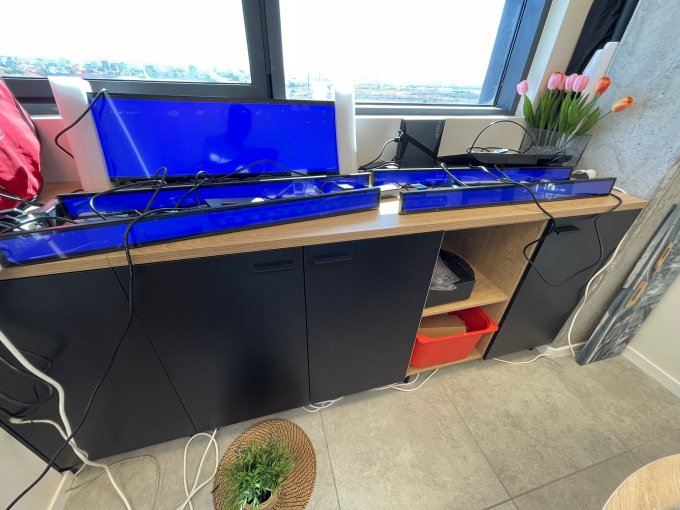

Lenovo InStore Screen video wall

Lenovo InStore Screen video wall



The content

You can perform this step even before installing the app, so you’ll have proper content to display immediately after the Windows player app of NoviSign is installed.
The only question here is in what dimensions should you create your creative to fit the layout of the InStore Screens? The answer is that it should be done in the same proportions of the layout, with resolution not greater than the actual supported resolution.
There might be exceptions where you’ll need to use a 16×9 creative where the content will be taken only from a certain part of the creative as presented in a technical post about a special videowall configuration, under the title “Non conventional displays”, in the block that deals with LED special displays.
Just make sure that the media you use (videos and images) will not have dimensions greater than the maximum supported screen resolution of those displays altogether.

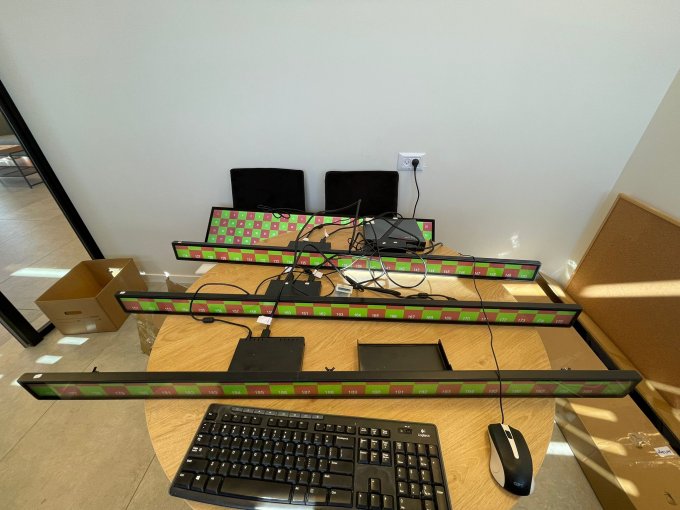

InStore shelf screens

InStore shelf screens



Here is an example:
The top screen will be 1920x532p
The next screen (below) will be 2880x158p (let’s “translate” it to 1920×105.3p)
The next screen (below) will be 2880x158p (let’s “translate” it to 1920×105.3p)
The next screen (below) will be 2880x158p (let’s “translate” it to 1920×105.3p)
So totally, the with will be 1920p and the height will be 848p (532+105.3+105.3+105.3). That means you should build your creatives so they will have a resolution of 1920x848p. Also, make sure your media files have no greater dimensions than 1920p in width and not greater than 848p in height.

Nir, the “Dude”.

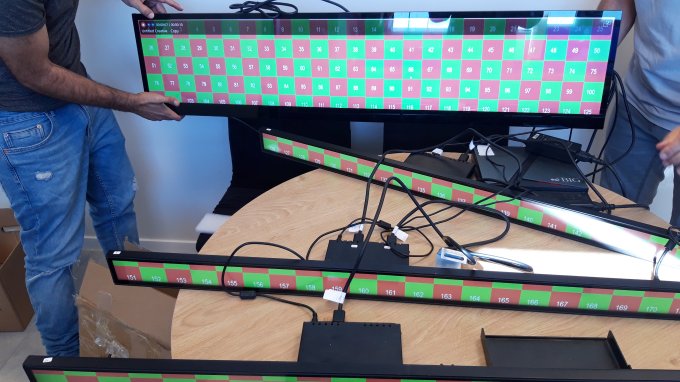

Aligning InStore shelf displays

Aligning InStore shelf displays

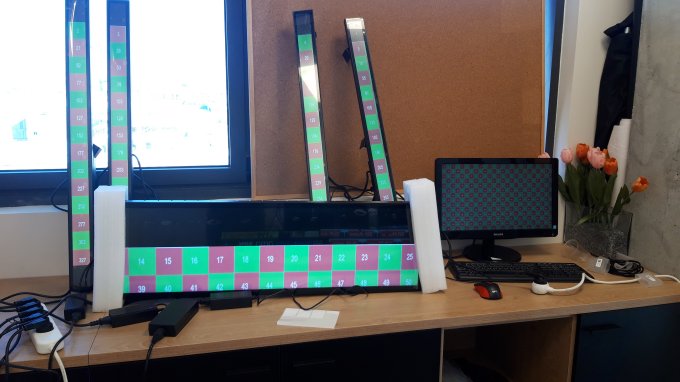

Lenovo vertical shelf screens
